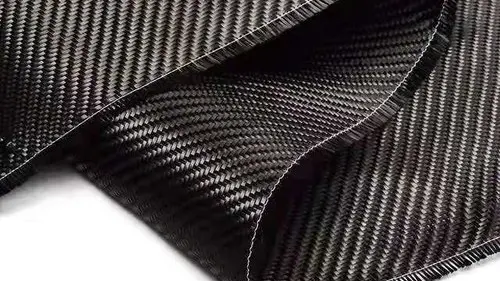

Properties of carbon fiber weaves and twills
Published on 9/15/2020· Updated on 7/22/2026
Carbon fiber is manufactured by carbonizing and graphitizing polyacrylnitril fibers, petroleum residues or rayon at suitable temperatures to obtain fibers between 7 and 8 microns in diameter. In other words, carbon fibers are derived from different sources. Once carbonization is achieved, most of the non-carbon atoms are expelled and long chains of intertwined carbon atoms remain.
Carbon fiber fabric is made from interwoven carbon fibers and these are combined with resins and other materials to give it stability or shape, known as composites or composites.
It is manufactured by carbonizing and graphitizing polyacrylnitril fibers, petroleum residues or rayon at appropriate temperatures to obtain fibers between 7 and 8 microns in diameter. In other words, carbon fibers are derived from different sources. Once carbonization is achieved, most of the non-carbon atoms are expelled and long chains of intertwined carbon atoms remain.
Once the fibers are in place, they are interwoven to form a fabric that is very difficult to break and is highly resistant to tension.
Main applications of carbon fiber fabrics
Its main applications are the manufacture of parts or their reinforcement:
- With this product, other products can be created or existing ones can be strengthened.
- It is essential for industrial safety as a coating for impact resistance.
- Carbon fibers combined with Kevlar have applications for maintenance curtains.
In the market there are different types of carbon fiber, known as rovings, according to the number of filaments and their manufacturing process, which give greater or lesser resistance to the fabric. These range from 1,000 filaments, 3,000, 6,000, 12,000, etc. and are produced under different parameters or material of origin.
From this, different textile products are produced such as woven, knitted or overlaid fabrics, which due to their textile structure offer different properties or combinations of properties such as flexibility, tensile strength, etc.
Advantages of carbon fiber fabrics Advantages of carbon fiber fabrics
Carbon fiber fabrics offer an excellent mechanical strength to weight ratio for the final product.
Although at present the cost of this material and its derivative products is a little high compared to others, carbon fiber composite materials are durable over time and resistant to external agents, so it can be considered as an excellent investment.
In we seek to share with you news from the world of carbon and graphite of your interest, for the development of your projects and ideas such as carbon fiber fabric. In that aspect, we keep you informed about the latest in carbon fibers, as well as fabrics that are strengthened with graphite.
Due to the above, we recommend you to request a personalized consultation with one of our consultants, to propose the best options for your company.
Limitations to consider
Performance depends on graphite grade, grain orientation, temperature, load, pressure, speed, and operating environment. Material selection should be confirmed for your actual process conditions.
